Powerex® Medical Scroll Enclosure Systems

Powerex trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

Benefits & Features

Oil-less scroll pump technology
Low maintenance
Fully compliant with NFPA 99
Manufactured in ISO 9001:2008 certified facilities

Duplex Model: MSED1003, MSED15B4, MSED1504, MSED20B4, MSED2004, MSED2254, MSED30B5, MSED3006, MSED4006, MSED50B6
Triplex Model: MSET1004, MSET1505, MSET20B6, MSET2006, MSET2256, MSET30B6, MSET3006, MSET40B6, MSET4006, MSET50B7, MSET60B7
Quadplex Model: MSEQ1506, MSEQ2006, MSEQ2256, MSEQ30B6, MSEQ3007, MSEQ40B7, MSEQ4007, MSEQ45B8, MSEQ50B8, MSEQ60B8

*Scroll to the right on mobile to see entire chart

Quantity	Model	System HP	Pump HP	SCFM @ 50 PSIG	Tank(gal)	dB(A) Level	FLA @ 208V	FLA @ 230V	FLA @ 460V
Duplex
	MSED1003	10(2)	5	33.2	80	53	59.6	54.0	28.0
	MSED15B4	15(2)	7.5	47.6	120	62	-	36.6	19.3
	MSED1504	15(2)	5	49.8	120	56	88.4	80.0	40.9
	MSED20B4	20(2)	10	63.2	120	63	-	48.0	25.0
	MSED2004	20(2)	5	66.4	120	58	117.2	106.0	53.9
	MSED2254	22.5(2)	7.5	71.4	120	64	-	53.9	27.9
	MSED30B5	30(2)	10	94.8	200	65	-	71.0	36.5
	MSED3006	30(2)	5	99.6	240	59	174.8	158.0	79.9
	MSED4006	40(2)	5	132.8	240	60	232.4	210.0	105.8
	MSED50B6	50(2)	10	158.0	240	66	-	117.0	59.5
Triplex
	MSET1004	10(3)	5	66.4	120	56	88.4	80.0	40.9
	MSET1505	15(3)	5	99.6	200	59	131.6	119.0	60.4
	MSET20B6	20(3)	10	126.4	240	65	-	48.0	25.0
	MSET2006	20(3)	5	132.8	240	61	174.8	158.0	79.9
	MSET2256	22.5(3)	7.5	142.8	240	66	-	48.0	25.0
	MSET30B6	30(3)	10	189.6	240	67	-	71.0	36.5
	MSET3006	30(3)	5	199.2	240	62	261.2	236.0	118.8
	MSET40B6	40(3)	10	252.8	240	67	-	94.0	48.0
	MSET4006	40(3)	5	265.6	240	63	347.6	314.0	157.8
	MSET50B7	50(3)	10	316.0	400	68	-	117.0	59.5
	MSET60B7	60(3)	10	379.2	400	72	-	140.0	71.0
Quadplex
	MSEQ1506	15(4)	5	149.4	240	61	174.8	158.0	79.9
	MSEQ2006	20(4)	5	199.2	240	63	232.4	210.0	105.8
	MSEQ2256	22.5(4)	7.5	214.2	240	68	-	53.9	27.9
	MSEQ30B6	30(4)	10	284.4	240	69	-	71.0	36.5
	MSEQ3007	30(4)	5	298.8	400	64	347.6	314.0	157.8
	MSEQ40B7	40(4)	10	379.2	400	69	-	94.0	48.0
	MSEQ4007	40(4)	5	398.4	400	65	462.8	418.0	209.7
	MSEQ45B8	45(4)	7.5	428.4	660	69	-	105.8	53.8
	MSEQ50B8	50(4)	10	474.0	660	70	-	117.0	59.5
	MSEQ60B8	60(4)	10	568.8	660	73	-	140.0	71.0

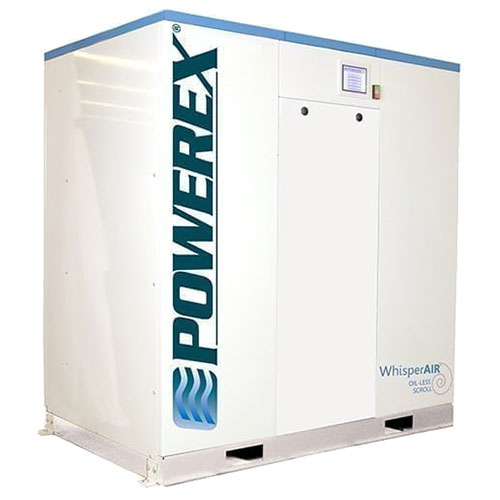

WHISPERAIR™ SOUND ENCLOSURE CABINET
Powerex’s trademarked oil-free enclosure systems offer the lowest noise levels in the industry. Each system is packaged in a rigid steel frame with powder coated panels and lined with sound-deadening insulation. The low noise levels are unmatched in the industry and allow installation at the point of use, while the small footprint simultaneously maximizes floor space.

OIL-LESS SCROLL PUMP TECHNOLOGY
Our innovative scroll technology is completely oil-less, extremely quiet, and energy efficient. The scroll pump has few moving parts, making it reliable and easier to maintain. The self lubricating tip seals and absence of a gearbox means the pump is truly 100% oil free. As the leaders in scroll pump technology, our latest design incorporates several innovative features:

Main bearings are housed in durable cast iron instead of aluminum which prevents fretting and premature failure of the bearing race. This pump can be operated at 100% duty with confidence.
The patented bearing re-grease feature has been improved to allow maintenance from the front side of the pump, cutting service time in half.
The patented tip seal design yields the highest flow rates and longevity of any other dry scroll compressor.
The improved efficiency and cooling results in lower operating temperatures.
Extremely low vibration.
Industry first 10hp scroll pump improves system efficiency by producing more output using fewer pumps.

ENERGY EFFICIENCY
With the Powerex Variable Pump Drive system, each compressor pump is automatically staged on/off individually based on actual system demand, maximizing energy efficiency at all usage levels. Lead compressor status will alternate every time a pump is called for – or every 10 minutes, whichever comes first – which maintains equal run hours and extends maintenance intervals. Redundancy is built into our system with our multiple pump design, eliminating the need to purchase an additional compressor.

SYSTEM FEATURES

3-5 HP SIMPLEX MODELS

3-5 HP systems are UL/CSA certified
Integral 13 gallon tank ASME/CRN
Inlet filtration with replaceable element
Front mounted control panel includes:

On/Off switch
Power on light
High temperature shutdown with indication light
Run time hourmeter
Pressure gauge
Automatic start/stop operation
Control voltage starter with motor overload protection

Internal vibration isolators
Air-cooled aftercooler
ODP Motor

10-60 HP MULTIPLEX MODELS

10-20 HP systems are UL/CSA certified
Inlet filtration with replaceable element
Front mounted control panel includes:

On/Off switch
Power on light
High temperature shutdown with indication on the display
Run time hourmeter for each pump
Maintenance counter with alarm warning display
System pressure display
Full voltage starter with overload protection
General compressor fault with remote contacts

Internal vibration isolators
TEFC Motor

ACCESSORIES & OPTIONS

Air receivers 30-600 gal
Desiccant air treatment systems
Refrigerated air treatment systems
Remote inlet filters
Master lead/lag controllers for multiple cabinets
NFPA 99 compliant systems
Laboratory system packaging
CO monitor
Dewpoint monitor
50Hz motors
