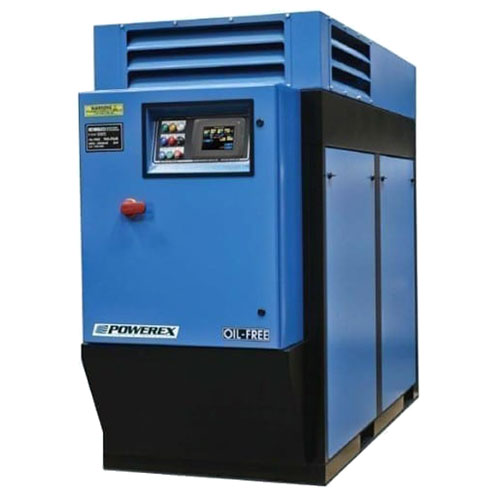

Powerex® Laboratory Rotary Screw Enclosure Systems

Powerex Kobelco KNW® laboratory series leverage an oil-free, risk free rotary screw design in a sound enclosure cabinet in order to minimize noise and system footprint. Dryers are sized with one pump in reserve with automatic valves to energize the reserve dryer as needed.

Call us TODAY at 727-835-0662 or
Toll Free at 800-761-4298

Request A Quote!

Duplex Model: LDRE0406, LDRE0507, LDRE0607, LDRE0757, LDRE1007
Triplex Model: LTRE0407, LTRE0507, LTRE0607, LTRE0757, LTRE1007

*Scroll to the right on mobile to see entire chart
Quantity
Add to
Quote
Model
HP
SCFM @
100 PSIG
Tank (gal)
dB(A) Level
FLA @ 208V,
3PH
FLA @ 230V,
3PH
Spec
Sheet
Duplex
LDRE0406
40
244
240
70
156
78
LDRE0507
50
344
400
78
196
98
LDRE0607
60
446
400
78
228
114
LDRE0757
75
584
400
79
278
139
LDRE1007
100
800
400
81
354
177
Triplex
LTRE0407
40
366
400
70
156
78
LTRE0507
50
516
400
78
196
98
LTRE0607
60
669
400
78
228
114
LTRE0757
75
876
400
79
278
139
LTRE1007
100
1200
400
81
354
177



OIL-FREE RISK FREE ROTARY SCREW DESIGN
Since the first compressor manufactured in 1955, Kobelco® has stayed one step ahead of the competition with constant innovation and dedication to quality. Long acknowledged to be the most efficient, low cost and reliable method for producing oil-free air, the Kobelco® KNW Series rotary screw compressor is available in sizes ranging from 20-100 horsepower. The Kobelco® KNW Series offers the most complete line available on the market.


LOW INSTALLATION COST
Conveniently located utility connections provide quick and easy installation. Units are thoroughly factory tested prior to shipment. All models have the same compact footprint. Air or water cooled models are available.


QUIET
Full sound enclosure with easy to remove panels provide quick access for routine maintenance. Quiet operation 64-74 dB(A) is standard for both air and water cooled models.

PREMIUM EFFICIENT MOTOR
A premium efficient, EISA heavy-duty motor is flange mounted to the compressor for permanent trouble-free alignment.

SYSTEM OPTIONS

  • Air or Water cooled cooling system
  • CO Monitor (standard on Medical Systems, optional on Lab)
  • VFD control panel
  • Activated carbon final filters


AIR TREATMENT CENTER PACKAGE
  • Includes:
    • Dual heatless twin tower desiccant dryers, dual filters, dual regulators and dual safety relief valves
    • Dew point monitor
    • CO monitor (optional)
    • A sample port
    • Air receiver
  • All components mounted and plumbed together with bypass valves
